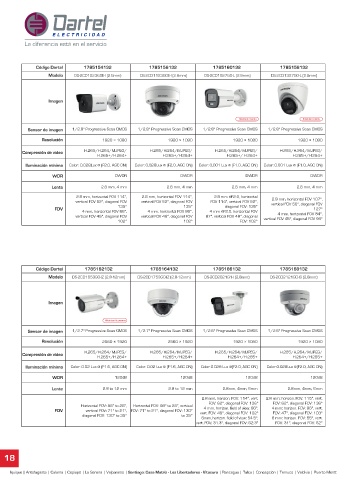

Page 18 - Catalogo Dartel Electricidad - Hikvision
P. 18
Código Dartel 1785154132 1785156132 1785160132 1785158132
Modelo DS-2CD1023G0E-I (2.8mm) DS-2CD1123G0E-I (2.8mm) DS-2CD1027G0-L (2.8mm) DS-2CD1327G0-L (2.8mm)
Imagen
Hikvision ColorVu Hikvision ColorVu
Sensor de imagen 1/2.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS
Resolución 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080
Compresión de video H.265/H.264/MJPEG/ H.265/H.264/MJPEG/ H.265/H.264/MJPEG/ H.265/H.264/MJPEG/
H.265+/H.264+ H.265+/H.264+ H.265+/ H.264+ H.265+/H.264+
Iluminación mínima Color: 0.028Lux @ (F2.0, AGC ON) Color: 0.028Lux @ (F2.0, AGC ON) Color: 0.001 Lux @ (F1.0, AGC ON) Color: 0.001 Lux @ (F1.0, AGC ON)
WDR DWDR DWDR DWDR DWDR
Lente 2.8 mm, 4 mm 2.8 mm, 4 mm 2.8 mm, 4 mm 2.8 mm, 4 mm
2.8 mm, horizontal FOV 114°, 2.8 mm, horizontal FOV 114°, 2.8 mm @F2.0, horizontal
2.8 mm, horizontal FOV 107°,
vertical FOV 62°, diagonal FOV vertical FOV 62°, diagonal FOV FOV 114°, vertical FOV 62°, vertical FOV 56°, diagonal FOV
FDV 135° 135° diagonal FOV: 135° 127°
4 mm, horizontal FOV 86°, 4 mm, horizontal FOV 86°, 4 mm @F2.0, horizontal FOV 4 mm, horizontal FOV 84°,
vertical FOV 46°, diagonal FOV vertical FOV 46°, diagonal FOV 87°, vertical FOV 48°, diagonal vertical FOV 45°, diagonal FOV 99°
102° 102° FOV: 102°
Código Dartel 1785162132 1785164132 1785166132 1785168132
Modelo DS-2CD1653G0-IZ (2.8-12mm) DS-2CD1753G0-IZ (2.8-12mm) DS-2CD2021G1-I (2.8mm) DS-2CD2121G0-IS (2.8mm)
Imagen
Hikvision Acusense
Sensor de imagen 1/2.7" Progressive Scan CMOS 1/2.7" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS
Resolución 2560 × 1920 2560 × 1920 1920 × 1080 1920 × 1080
Compresión de video H.265/H.264/MJPEG/ H.265/H.264/MJPEG/ H.265/H.264/MJPEG/ H.265/H.264/MJPEG/
H.265+/H.264+ H.265+/H.264+ H.264+/H.265+ H.264+/H.265+
Iluminación mínima Color: 0.02 Lux @ (F1.6, AGC ON) Color: 0.02 Lux @ (F1.6, AGC ON) Color:0.028 Lux @(F2.0; AGC ON) Color:0.028Lux @(F2.0, AGC ON)
WDR 120dB 120dB 120dB 120dB
Lente 2.8 to 12 mm 2.8 to 12 mm 2.8mm, 4mm, 6mm 2.8mm, 4mm, 6mm
2.8 mm, horizon. FOV: 114°, vert. 2.8 mm: horizon. FOV: 115°, vert.
FOV: 62°, diagonal FOV: 136° FOV: 62°, diagonal FOV: 136°
Horizontal FOV: 98° to 28°, Horizontal FOV: 98° to 28°, vertical
FDV vertical FOV: 71° to 21°, FOV: 71° to 21°, diagonal FOV: 130° 4 mm, horizon. field of view: 86°, 4 mm: horizon. FOV: 86°, vert.
diagonal FOV: 130° to 35° to 35° vert. FOV: 46°, diagonal FOV: 102° FOV: 47°, diagonal FOV: 103°
6mm, horizon. field of view: 54.5°, 6 mm: horizon. FOV: 55°, vert.
vert. FOV: 31.3°, diagonal FOV: 62.3° FOV: 31°, diagonal FOV: 62°
18
